Zoom G11 Guitar Multi-Effects Processor
Product Code: FXM080
1 Currently In Stock
OUT OF STOCK
$1,099
$1,649
33% OFF

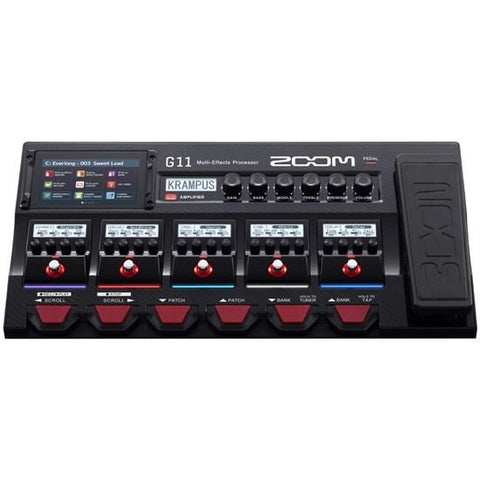

Zoom G11 Multi-Effects Processor
"At Zoom, we’ve been designing Multi-Effects for guitar players for over 30 years. The G11 represents the culmination of our engineering and passion."
- Integrated pedal board with dedicated amp modeling panel, five stomp switches and expression/volume Control
- Touchscreen interface on color LCD with drag and swipe functions for easy and fast navigation
- Chain up to nine effects plus an amplifier emulation
- Original amp modeling combinations
- Original distortion and modulation effects
- 70 built in IR emulations plus 130 available slots for user uploaded IR's
- Two send/return effects loop plus MIDI in/out
- 5-minute stereo looper
- 68 built-in rhythm patterns
- USB audio interface for direct recording to your DAW
- Remote iOS connection for using Handy Guitar Lab via Bluetooth adapter (BTA-1)
- Compatible with Zoom Guitar Lab to download additional effects
SPECS
MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS : Amplifier + 9 effects
USER PATCHES : 240
SAMPLING FREQUENCY: 44.1 kHz
A/D CONVERSION: 24-bit 128× oversampling
D/A CONVERSION: 24-bit 128× oversampling
SIGNAL PROCESSING: 32-bit
FREQUENCY CHARACTERISTICS: 20 Hz – 20 kHz (+1 dB/−2 dB) (10kΩ load)
DISPLAYS: 5" TFT color LCD (800×480) Dot-matrix LCDs (128×32) (6)
INPUTS
INPUT: Standard mono phone jack Rated input level: -20 dBuInput impedance (line): 500 kΩ
RETURN: Standard mono phone jacks (2) Rated input level: -20 dBuInput impedance (line): 1 MΩ
AUX IN: Stereo mini jack Rated input level: -10 dBuInput impedance (line): 10 kΩ
OUTPUTS
LEFT/RIGHT: Standard mono phone jack Maximum output level:INST/LINE +11.4 dBu/+19 dBu (when output impedance 10 kΩ or higher)
PHONES: Standard stereo phone jack Maximum output level:Line +11.4 dBu (when output impedance 10 kΩ or higher)Headphones 24 mW + 24 mW (at 32Ω load)
SEND: Standard mono phone jacks (2) Maximum output level:Line +11.4 dBu (when output impedance 10 kΩ or higher)
INPUT S/N : 123 dB
NOISE FLOOR (RESIDUAL NOISE): Left/Right : INST/LINE −99.5 dBu/−92.5 dBuSEND: -99.0 dBu
MIDI IN/OUT: 5-pin DIN jacks
CONTROL INPUT: FP02M input
USB DEVICE: Connector: USB2.0 Type-C / Supported cable: Type-C cable GuitarLab: USB1.1 Full SpeedAudio Interface: USB2.0 High Speed, 44.1 kHz/32-bit 4in 4out• Use cables for data transfer. USB bus power not supported.
USB HOST: Connector: USB2.0 Type-A / Standard: USB 2.0 High Speed • Use a USB thumb drive.
REMOTE: ZOOM BTA-1 or other dedicated wireless adapter
EXTERNAL DIMENSIONS: 253 mm (D) × 495 mm (W) × 64 mm (H)
WEIGHT: 2.8 kg
